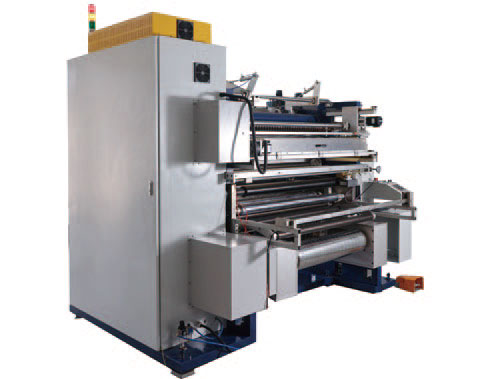

New Energy Ultra-thin Film Slitting Machine For MOPP

Features

The ﬁnished roll tension control even, end face is ﬂat.
Razor blade design, use in maganetic holder to hold the blade and can change the blade quickly.
The tension control of the whole machine is controlled by servo motor，unwinding part with noiseremoval design,The abnormal alarm is designed as a buzzer alarm.

Jumbo width	500~1050mm	Finished roll width	Min.20mm
Jumbo roll diameter	Max.620mm	Finished roll diameter	Max.400mm
Jumbo roll core dia	6inch	Finished roll core dia	3inch
Film thickness	2~30um	Max.speed	50~500m/min
Rewind shaft	air shafts	Slitting blade	By razor blades
Web guiding	Edge control	Machine dimension	190024002400(mm)
PLC&Touch panel screen	Import/Domestic	-	-

Description

The new energy ultra-thin film slitting machine is an important equipment in the field of new energy material processing, which is mainly used for cutting ultra-thin film materials in new energy products such as solar panels, lithium-ion batteries, and fuel cells. These ultra-thin film materials are usually thin, soft, and easy to curl, and require extremely high cutting accuracy and efficiency.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
