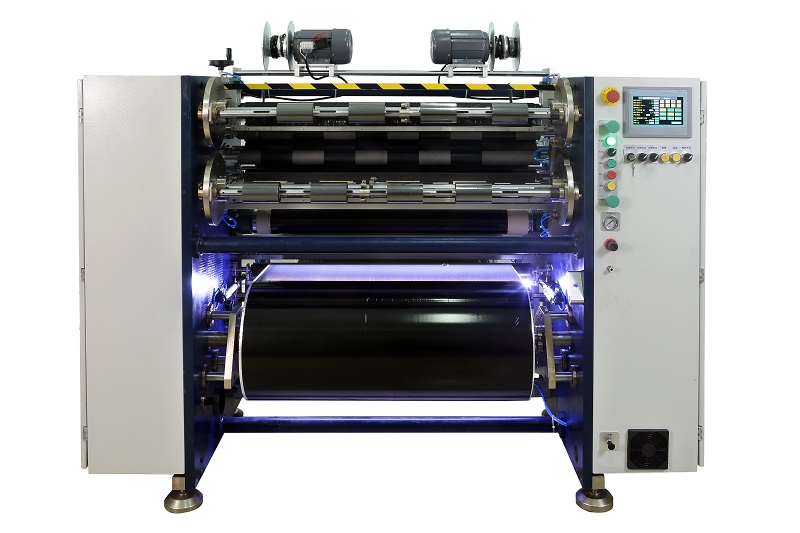

Manual Thermal Transfer Ribbon Slitting Machine RSDS1

Features

The use of advanced mechanical structure and control system can achieve high-speed, continuous slitting operation and improve production efficiency.
Through the precision tool and control system, the slitting accuracy is ensured and the material waste is reduced.
It is equipped with functions such as automatic unwinding, automatic slitting, and automatic winding to reduce manual intervention and improve the level of production automation.
Support different widths, different materials of thermal transfer ribbon slitting, to meet the production needs of different users.
The modular design is convenient for the maintenance and maintenance of the equipment.

Jumbo roll width	650mm~1010mm	Control system(RSDS1)	INOVANCE PLC& touch pane
Jummbo roll diameter max	630mm	Drive system(RSDS1)	INOVANCE servo motors
Jumbo roll core dia	6 inch/3 inch	Controlsystem(RSDS2)	SIFMENS PLC & touch panel
Max.speed	300m/min	Drive system(RSDS2)	SANYO servo motors
Film thickness	4~20um	Power	AC380V/220V,50~60Hz
Finished roll core	1 inch/ 1/2 inch	Motor power	6KW
Finished roll dia	120mm	Air power	0.6~0.8MPa

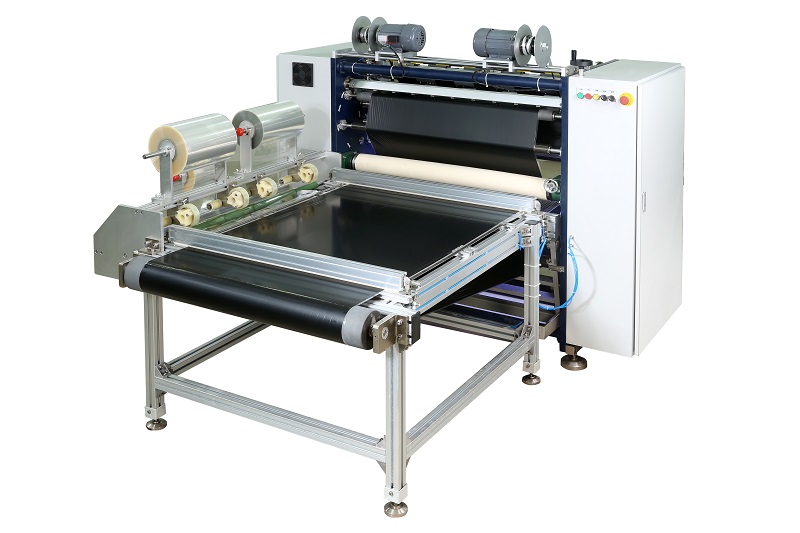

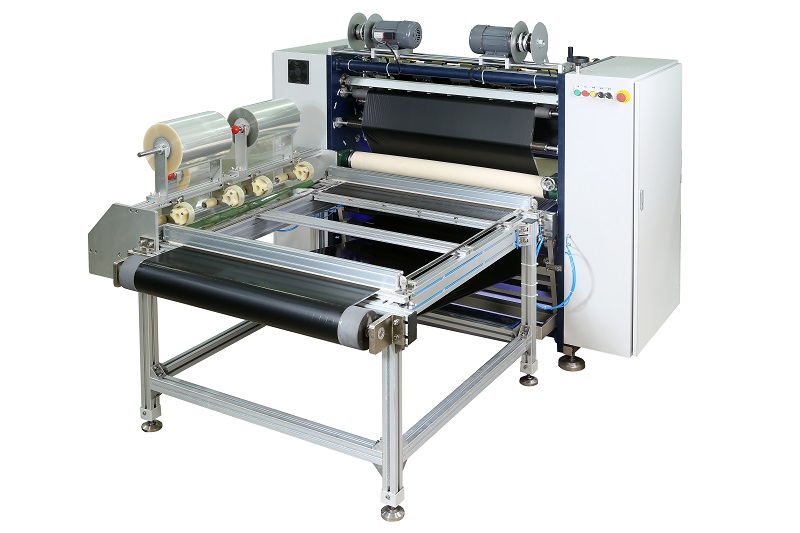

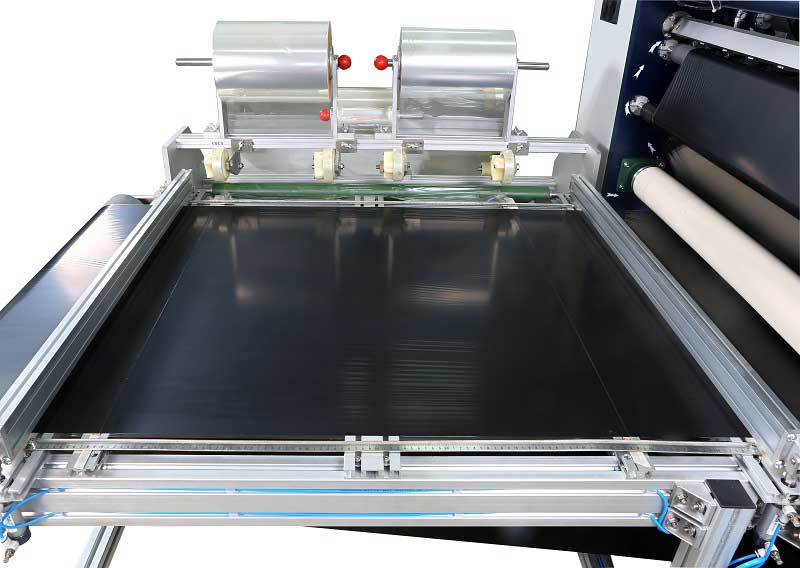

L/Tapplication table	Manual leader table	Dimension	220019501660(mm)
Blade holder qty	25pcs

Description

The thermal transfer ribbon slitting machine slits the wide thermal transfer ribbon material into a narrow ribbon that meets the user's needs through a specific mechanical structure and control system. Widely used in packaging, clothing, luggage, household goods and other industries, it is one of the indispensable equipment in thermal transfer technology. It can meet the printing needs of different sizes and materials, improve production efficiency and reduce production costs.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
