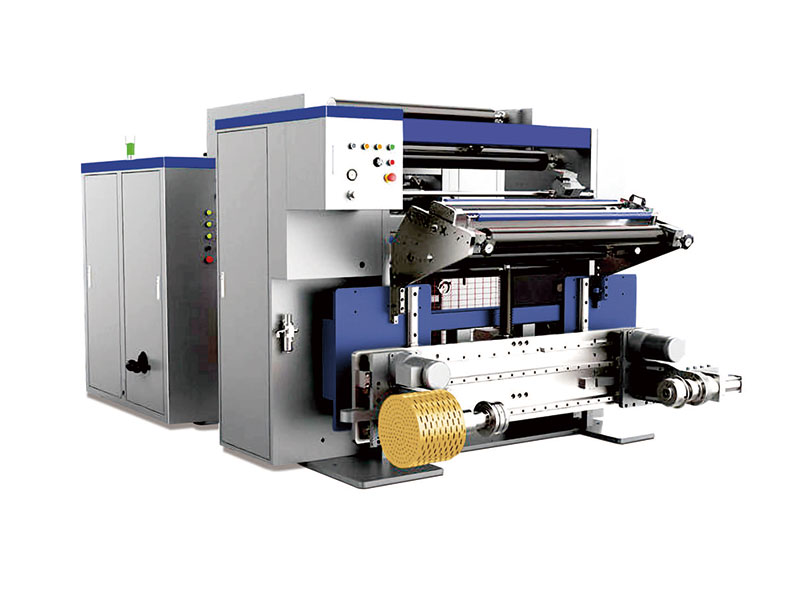

High Speed Slitting Machine

Features

Capacitor film, battery separator, battery al-plasticflm, aluminum foil, hot-stamping foil
Automatic feeding by motor
Automatic adjustment of unwinding width by motor
A material receiving platform with a cutting knife and pneumatic pressing mechanism
Servo control system
Segmented tension control
Razor blade slitting
Slip shaft winding
Center winding together with surface winding
Laser paper core positioning
Technical self-diagnosis
Maintenance tips

Optional features

Banana roller
Slitting by Disc blade
Wave-slitting
Remote diagnosis
6-inch winding shaft
Automatic unloading of finished rolls
ERP access
Slip shaft winding

	STANDARD	OPTIONAL
Working width	650mm-1050mm	1350mm
Unwinding diameter Max	Ф800mm	Ф1000mm
Material thickness	2UM-15UM	50Um-200Um
Winding diameter Max	Ф400mm	Ф600mm
Winding width Min	5mm	-
Working speed Max	400m/min	500m/min

Description

The main features of the high speed slitting machine include high precision, high efficiency, and high degree of automation. It adopts advanced control system and transmission system, which ensures the slitting accuracy and stability, and also improves the production efficiency. At the same time, the high-speed slitting machine also has the characteristics of easy operation and easy maintenance, which can meet the needs of different users.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
