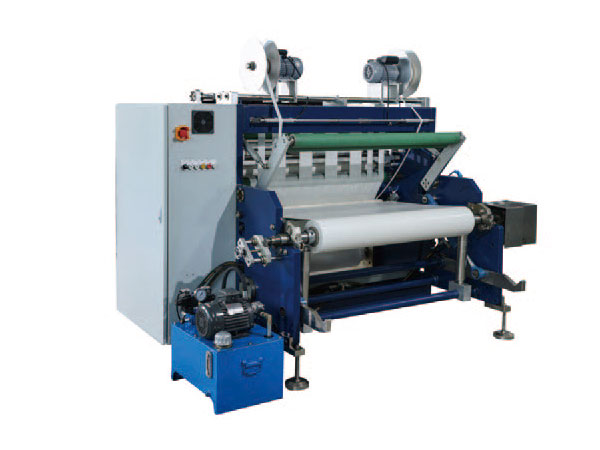

Double Sided Adhesive Slitting Machine

Features

Advanced control systems and sensors are used to ensure slitting accuracy and winding quality.
The degree of automation is high, and the slitting speed is fast, which can meet the needs of large-scale production.
According to different double-sided tape materials and slitting requirements, different cutting mechanisms and functional rollers can be configured.
The man-machine interface is friendly, the operation is simple and fast, and it is convenient for workers to operate and maintain.

Jumbo width	350~1100mm	Finished roll width	Min.20mm
Jumbo roll diameter	Max.800mm	Finished roll diameter	Max.135mm
Bottom flm rewinding diameter	Max.400mm	Jumbo roll core dia	3inch
Film thickness	20~80um	Finished roll core dia	1inch
Rewind shaft	air shafts	Max.speed	50~250m/min
Web guiding	Edge control	Slitting blade	By circular blades
PLC&Touch panel screen	Import/Domestic	Machine dimension	180022001700(mm)

Description

A double-sided tape slitting machine is a mechanical equipment used to cut wide double-sided tape into small tapes of a specified width. This type of mechanical equipment usually consists of a motor-driven belt conveyor system, high-precision cutting blades, and an electronic control system. During operation, the double-sided tape is fed into the slitting machine, and the precise cutting blade is cut into a small tape of the specified width. The double-sided tape slitting machine provides consistent and precise cutting results, ensuring that the resulting tape is suitable for its intended use.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
