Jumbo width | 500~1400mm | Finished roll width | Min.20mm |
Jumbo roll diameter | Max.700mm | Finished roll diameter | Max.600mm |
Jumbo roll core dia | 6inch | Finished roll core dia | 3inch |
Film thickness | 4~30um | Max.speed | 50~500m/min |
Rewind shaft | air shafts | Slitting blade | By circular blades |
Web guiding | Edge control | Joint table | Manual operation |
PLC&Touch panel screenPLC | Import/Domestic | Machine dimension | 3800*3400*2000(mm) |

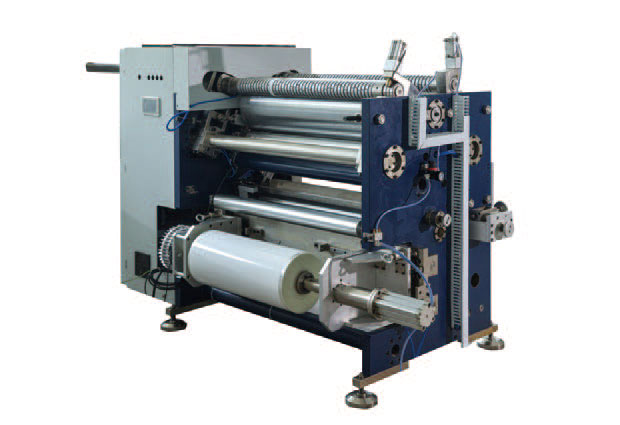

This 800mm pvc foil slitting machine is acknowledged for its high automation degree. This machine contains dual step length counter for maintaining accuracy of rewinding length. Its programmable controller is used to regulate entire rewinding process. LCD screen of this pvc foil slitting machine is used for displaying tension and length of slit pvc foil. Mechanical smoothing accessory which is offered as its optional feature is used to remove air bubble and wrinkle from slit pvc foil post rewinding. We are a prestigious manufacturer and exporter of best grade 80mm pvc foil slitting machine.
Design and product the most professional slitter for customer
Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
Become a real international brand in the slitter industry.
