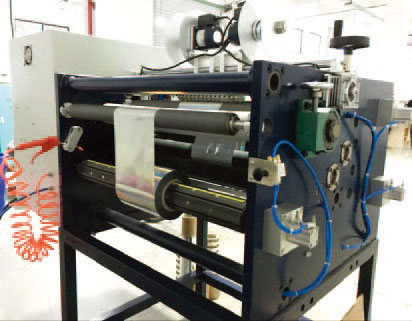

750mm Foil Slitting Machine

Features

Provided slitting system is suitable for slitting different sorts of plastic films, foils and papers.
Precise operation and automatic error correction function of this machine deserve praise.
User friendly design
Offered in automatic and manual operating mode

Jumbo roll width	750mm in max	Working speed	200m/min max
Jumbo roll OD	300mm in max	Motor Power	4KW
Jumbo roll weight	120kgs in max	Electricity power	380V 3phase 50HZ
Jumbo roll core ID	3"	Air power	0.6-0.8MPa
Jumbo Installation	With shaft inside	Blade	Razor blade
Finished roll width	10mm by rasor blade	Machine weight	350kgs
Finished roll OD	250mm in max	Machine size	1500900850mm
Finished roll core ID	1" or 3"	-	-

Description

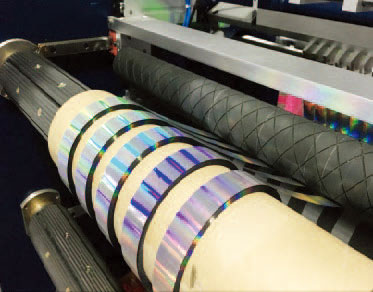

Our range of manual and automatic foil slitting is extensively used for rewinding and slitting of films made of PP, PVC, PE and BOPP. This array of slitting equipment is also suitable for slitting kraft paper, PSP paper, aluminum film and EVA material. This slitting system is equipped with advanced features like automatic material feeding system, self regulated side material exhausting arrangement, easy to operate human machine interface, easy to install razor blade and circle blade and mechanical edge correction regulation function. Rewinding mechanism of its double shaft works in horizontal direction. Offered foil slitting machine can be accessed in different motor speed, roller diameter and central engine power based options. Automatic tension controlling arrangement and auto counting function of this slitting machine deserve special mention. Rolls that need to be slit can be adjusted to avoid their deviation in horizontal and in vertical directions.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
