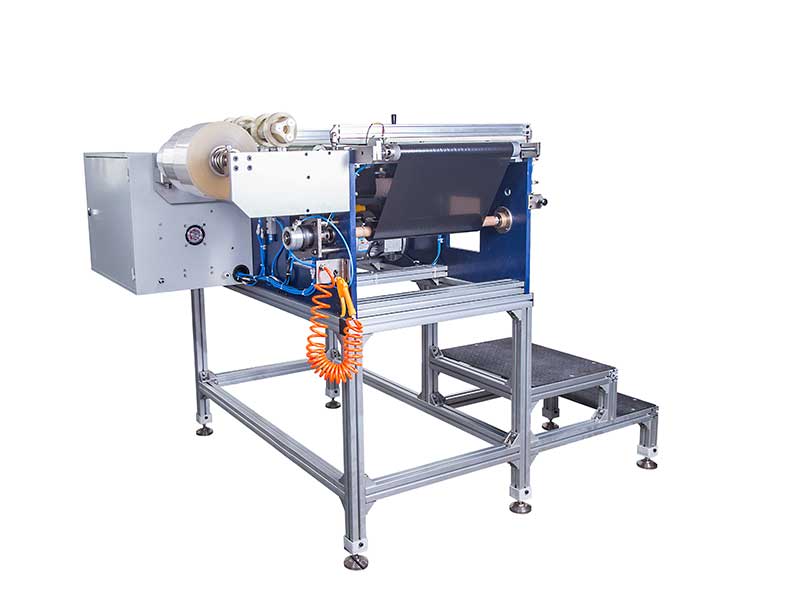

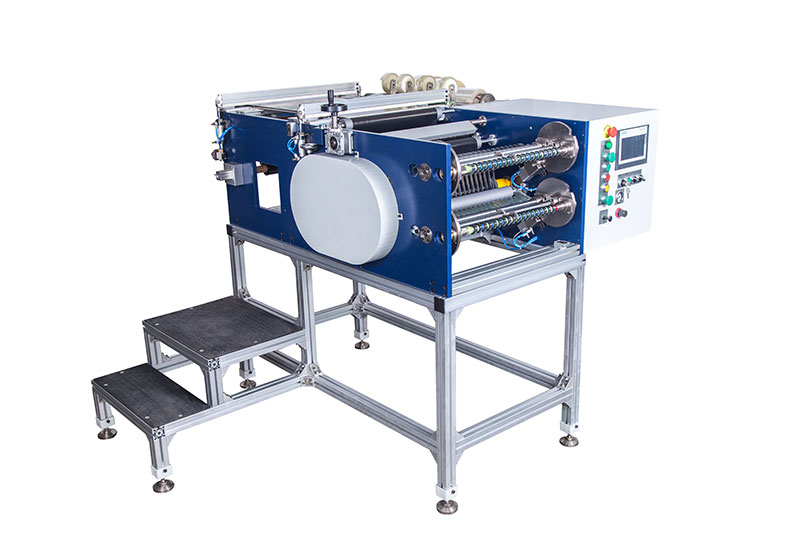

450S Mini Slittting Machine

Features

The mini slitter has a compact design and takes up little space, making it easy to move and store.
Users can get started without professional training, which lowers the threshold for use.
The use of advanced slitting technology can ensure slitting accuracy and meet various processing needs.
The equipment is equipped with safety guards to ensure safety during operation.

Control system	SIEMENS touch screen, SIEMENS PLC	Blade holder qty	10pcs of standard blade holder or customize blade spacers
Drive system	SANYO servo motor for rewinding	Speed	20~150m/min
Unwinding roll width	450mm	L/Tapplication table	With leader/trailer application table
Unwinding roll core dia	1 inch or customized 3inches	Waste system	Torque motor for waste ribbon winding
Unwinding roll diameter	300mm	Tension controlsystem	Servo motor for tension control
Rewinding roll core dia	1 inch or customized special core size	Power: single phase	220V,50~60HZ
Rewinding roll dia	100mm in max	Air power	0.6~0.8MPa
Film thicknes	4~20um	Dimension	189014501320(mm)
Rewind system	4 rewinding shafts system	N.W.	180kgs
Rewind shaft	4pcs of 1 inch air. shaft or customized solid shaft	-	-

Description

The 450s mini slitting machine is a machine used to cut large rolls of material into small rolls or small pieces. It is commonly used to cut materials such as paper, plastic film, metal foil, fabric, etc. The working principle of the slitter machine is to cut the material into the desired size and shape by means of a blade or cut-off wheel. The slitting machine usually has functions such as automatic feeding, automatic cutting, and automatic winding, which can greatly improve production efficiency and reduce manual operation. Slitting machines are widely used in packaging, printing, manufacturing and other fields.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
