1350mm Hot Stamping Foil Slitting Machine

Features

Rewinding controlled by servo motors; auto and digital tension control.

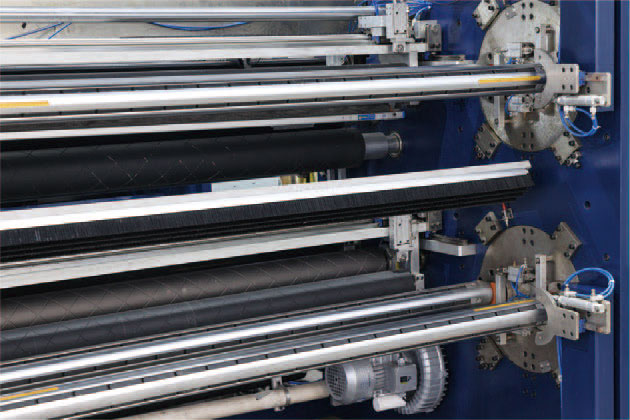

Rewinding shaft: 1 inch air shaft 2pcs; 3 inch air shaft 2pcs. Air shaft or Slipping shaft for choosing.
Rewinding part is design in double station 4 shafts, non stop rewinding with auto turret and auto cutting fnished roll function.
Blade and blade shaft: Razor blade or Round Blade for choosing or pneumatic blade for choosing.
Joint table using method one: use for jumbo roll replace or joint.It can design in manual/auto mode.
Joint table using method two: use for fnished roll labeling. It candesign in manualauto mode.
Can add the dust sucking device in separately, improve the dust in end face and dust flying out.

Jumbo width	400~1350mm	Finished roll width	Min.20mm
Jumbo roll diameter	Max.700mm	Finished roll diameter	Max.350mm
Jumbo roll core dia	6inch	Finished roll core dia	3inch
Film thickness	4~30μm	Max.speed	50~500m/min
Rewind shaft	air shafts	Slitting blade	By circular blades
Web guiding	Edge control	Joint table	Manual operation
PLC&Touch panel screen	Import/Domestic	Machine dimension	380034002000mm

Description

This 1350mm hot stamping foil slitting machine is acknowledged for its high automation degree. This machine contains dual step length counter for maintaining accuracy of rewinding length. Its programmable controller is used to regulate entire rewinding process. LCD screen of this hot stamping foil slitting machine is used for displaying tension and length of slit hot stamping foil. Mechanical smoothing accessory which is offered as its optional feature is used to remove air bubble and wrinkle from slit hot stamping foil post rewinding. We are a prestigious manufacturer and exporter of best grade 1350mm hot stamping foil slitting machine.
