1350mm/1600 Foil Slitting Machine

Features

The slitting machine can quickly cut a large amount of material into the required size and shape, improving production efficiency.
The slitting machine adopts advanced control system and precision cutting tools, which can achieve high-precision cutting and ensure product quality.
The slitting machine can be applied to the cutting of a variety of materials, such as pet, bopp, pvc, hot stamping foil, copper foil, with a wide range of application fields.
The slitting machine adopts an intelligent control system, which is simple and convenient to operate, and does not require professional skills.
The slitting machine can reduce manual operation, improve production efficiency, and thus reduce production costs.
The slitting machine adopts multiple safety protection measures, such as safety doors, emergency stop buttons, etc., to ensure the safety of operators.

Jumbo roll width	750mm/1350mm/1600mm in max	Working speed	300m/min or 450m/min
Jumbo roll OD	600mm/750mm in max	Motor Power	8-12KW
Jumbo roll weight	400kgs in max	Electricity power	380V 3phase 50HZ
Jumbo roll Core ID	3" or 6"	Air power	0.6~0.8MMPa
Jumbo installation	Without shaft inside	Blade	Razor blade or DISC blade
Finished roll width	10mm by rasor blede,35mm by cisc blade (opional）	Machine weight	2500kgs
Finished roll OD	135mm/180mm/200mm in max	Machine size
Finished roll core ID	1"

Description

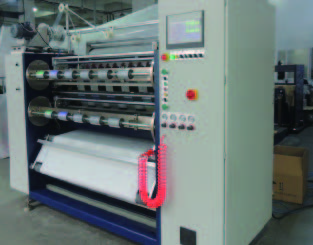

This 1350mm/1600 foil slitting machine is acknowledged for its high automation degree. This machine contains dual step length counter for maintaining accuracy of rewinding length. Its programmable controller is used to regulate entire rewinding process. LCD screen of this foil slitter is used for displaying tension and length of slit foil. Mechanical smoothing accessory which is offered as its optional feature is used to remove air bubble and wrinkle from slit foil post rewinding. We are a prestigious manufacturer and exporter of best grade 1350mm/1600 foil slitting machine.

Core Advantages

Design and product the most professional slitter for customer

Strong strength for independent development
Professional design and customized production
Intelligent Factory System Service
International quality supply management
High efficiency and thoughtful service

Quality Assurance

Our supply and production closely fit the requirements of the R&D team, effectively ensuring the delivery of high-quality and excellent products to our customers.
