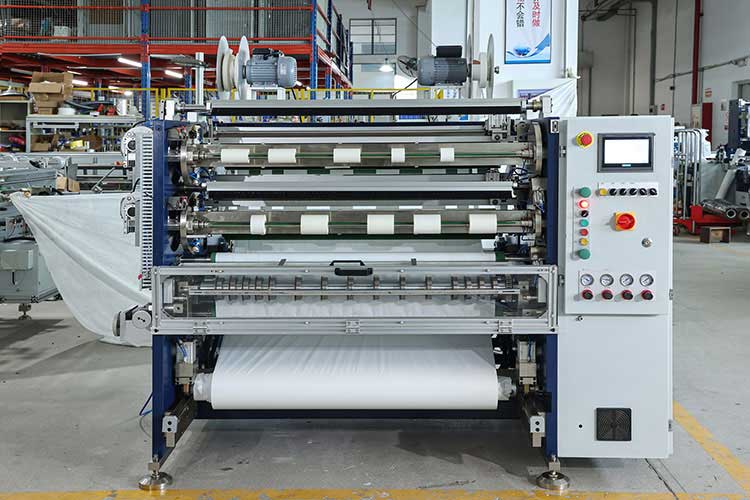

Introduce the use of self-adhesive slitting machine

The self-adhesive slitting machine is mainly used to accurately cut the whole roll of self-adhesive material according to the set length and width. The following is the basic use method of self-adhesive slitting machine:

1. Preparation before starting

1. Check the equipment: Make sure that all parts of the slitting machine are intact and that the power supply, air pressure and other systems are normal.

2. Adjust the parameters: according to the type, thickness, length and width of the self-adhesive material, adjust the relevant parameters of the slitting machine, such as cutting depth, cutting speed, tension, etc.

3. Install the blades: Choose the appropriate blades and install them correctly on the knife holder of the slitter machine according to the instructions. Make sure the blade is sharp, undamaged, and securely fastened.

2. Start-up operation

1. Turn on the power: Turn on the power switch of the slitter and wait for the device to start.

2. Adjust the air pressure: Adjust the air pressure value of the slitting machine according to the cutting requirements of the self-adhesive material. Usually, the air pressure value needs to be stable within a certain range to ensure the cutting effect.

3. Feeding: Place the whole roll of self-adhesive material on the unwinding rack of the slitting machine, and select the direction according to the inside and outside of the corona surface of the material. Then, use the control buttons to clamp the steel core and adjust the height and angle of the unwinder to allow the material to turn at a constant or fast speed.

3. Cutting operation

1. Start the device: Press the start button of the slitting machine to start the machine. At this time, the operating status of the equipment and the cutting effect should be closely monitored.

2. Adjust the cutting effect: During the cutting process, adjust the cutting depth, cutting speed, tension and other parameters according to the actual needs to get the best cutting effect. At the same time, it is also necessary to pay attention to monitoring the running status of edge material traction rollers, guide edges and other components to ensure the stability and accuracy of the cutting process.

3. Automatic stopping: When the self-adhesive material runs to the set length, the slitting machine will stop automatically. At this time, the film removal button can be pressed to put the cut material on the prepared film removal trolley, and the sealing process can be carried out.

4. Shutdown and cleanup

1. Stop: After completing the cutting task, press the stop button of the slitting machine to stop the equipment. Then turn off the power and air supply switches.

2. Cleaning equipment: Cleaning and maintenance work on the slitting machine, including cleaning the residue on the blades and tool holders, inspecting and replacing damaged parts, etc. Make sure the device is in good working order.

5. Precautions

1. Safe operation: When operating the slitting machine, the safety operation procedures should be strictly observed, such as wearing protective equipment and prohibiting touching the transmission parts. At the same time, it is important to pay attention to the safety environment around the equipment to ensure that no children or unrelated people enter the work area.

2. Maintenance: Regularly maintain the slitting machine, such as checking and replacing the blades, cleaning the lubrication system, etc. This helps to extend the life of the equipment and improve the cutting results.

3. Troubleshooting: In the process of use, if the equipment fails or abnormalities, it should be stopped immediately and professionals should be contacted for maintenance. Never disassemble or repair the device yourself to avoid greater damage or safety hazards.

To sum up, the use of self-adhesive slitting machine includes preparation before start-up, start-up operation, cutting operation, shutdown and cleaning, and precautions. When in use, it should be operated in strict accordance with the instructions and safety operating procedures to ensure the normal operation of the equipment and the cutting effect.
